Introduction
A 3 way switch wiring is one of the most prevalent electrical systems in the present day homes. It enables you to operate one light or light group in two places e.g. at the top and bottom of a staircase or at both the ends of a hallway. At first glance, a 3 way switch may seem to be an elaborate concept, but upon discovering how this kind of switch operates, it might be possible to install, replace, or even troubleshoot it with a lot more ease.
This step by step guide is all you will need to know to wire 3 way switch, to learn about wire colors, most common mistakes not to make, and some safety measures that should be taken. This article is a practical dissection of everything, whether it is a DIY homeowner or beginners electrician.
What Is a 3 Way Switch?
A special electrical switch that is used in pairs to operate one of the light fixtures in two different places is known as a 3 way switch. A 3 way switch is a single-pole switch unlike a normal one:
- Does not have ON/OFF markings
- Three-terminal and ground usage.
- uses traveler wires as the means of communication between switches.
This arrangement is mostly applied in:
- Staircases
- Long hallways
- Massive rooms with several entries.
- Two access garages.

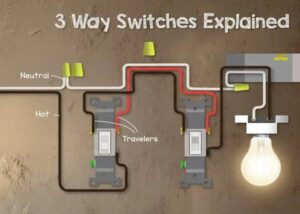

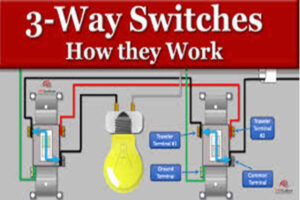

How 3 Way Switch Wiring Works
The role of each of the wires is to explain how the 3 way switch wiring works:
Key Components
- Common Wire: This is the light which is powered or connected to the light.
- Traveler Wires (2): Transfer current between switches
- Ground Wire: It is safe in that it keeps off electricity shock.
To enable or prevent flow of electricity to the light, a switch is flicked to modify the flow of electricity.
3 Way Switch Wiring codes Wiring wire colors.
It is necessary to know the color of wires in order to install them safely.
| Wire Color | Purpose |
| Black | Common wire (line or load) |
| Red | Traveler wire |
| White | Neutral (sometimes re-identified) |
| Green/Bare | Ground |
Caution: In a few installations, the white wire can be utilized as a traveler, and it should be covered with black tape.
Wiring a 3 Way Switch: Tools and Materials.
These Tools to prepare beforehand include:
- Voltage tester
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Electrical tape
- Needle-nose pliers
Giving the circuit breaker, make it off before working.
How to Wire 3 Way Switch, Step by Step.
Step 1: Turn Off Power
Turn-off the breaker and check off a voltage tester.
Step 2: Identify the Common Terminal
The common screw is usually black or darker than the others.
Step 3: Connect Traveler Wires
- Insert red traveling wires and black travelling wires to the brass end.
- Travelers are not concerned with order.
Step 4: Connect the Common Wire
- First switch: common to the power source
- Second switch: common connecting to light.
Step 5: Ground the Switch
Connect the green screw of the switch with the ground wire.
Step 6: Secure and Test
Install the switches once again, and re-enabling power.
Wiring switch combinations that are commonly used in 3 way switches.
Power to First Switch
- Most common configuration
- The first switch then gets the power and goes into the second and then to the light.
Power to Light Fixture
- Slightly more complex
- Wire identification must be checked.
Power to Second Switch
- Less popular but existent
- Wiring logic The logic is the same.

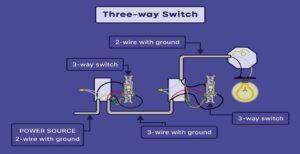

It is very advisable that the wiring diagram of a 3 way light switch should be used so as not to mix up.
Common Mistakes to Avoid
- The confusion between ordinary and wandering wires.
- Leaving out the marking of re-purposed white wires.
- Not grounding the switch
- Working on live power
By preventing such errors, it will be safe and operate properly.
Troubleshooting 3 Way Switch.
In case of failure of a switch:
- Light unidirectional switching at the switch→ Common wire can be wrong
- Flashing lights→ Loose connection.
- Switch does nothing → Power not reaching common terminal
Never replace switches unless you are sure that the connection is correct.
Guidelines to 3 way switch wiring safety.
- Always turn off the breaker
- Use insulated tools
- Adhere to local codes of electricity.
- Contact an electrician (licensed) in case of doubt.
One must not compromise electrical safety.
Advantages of 3 Way switch wiring Proper.
- Multiple location convenience.
- Better domestic functionality.
- Increased home value
- Energy efficiency
Properly wired system gives long term reliability.
FAQs.
1.What is the distinction between 3 way and single pole switch?
A light can be controlled with a single-pole switch in a single place, or with a 3 way switch wiring which can be controlled in either of two places.
2.Can I wire a 3 way switch myself?
Yes, provided a person observes the safety rules and possesses the basic knowledge about wiring. Novices are to employ diagrams.
3.Why are there no ON/ OFF labels on my 3 way switch?
Since the position of the switch may not always indicate ON or OFF, since either switch may control the light.
4.What will occur in case the traveler wires are switched?
Nothing so grave–traveler wires are universal and cannot make a difference.
5.Should a neutral wire be used on a 3 way switch?
Mechanical switches do not, however smart switches usually need a neutral.
Conclusion
Knowledge on 3 way switch wiring is a very basic tool that all homeowners or DIYers would need to know when they want to enhance the lighting capabilities of their homes. Although such might seem complicated at first with the introduction of wires run by travelers and all the terminals, the system becomes far simpler to control once you get to know how the common wire and the travelers coordinate to make a single light be controlled by two different places.
Finally, properly wired 3 way switch arrangement will bring convenience, safety and value to your house. Not only will you have better use of a 3 way switch on a daily basis but you will be able to master how to wire a 3 way switch and feel comfortable and sure of what you are doing with the switches in your home.
